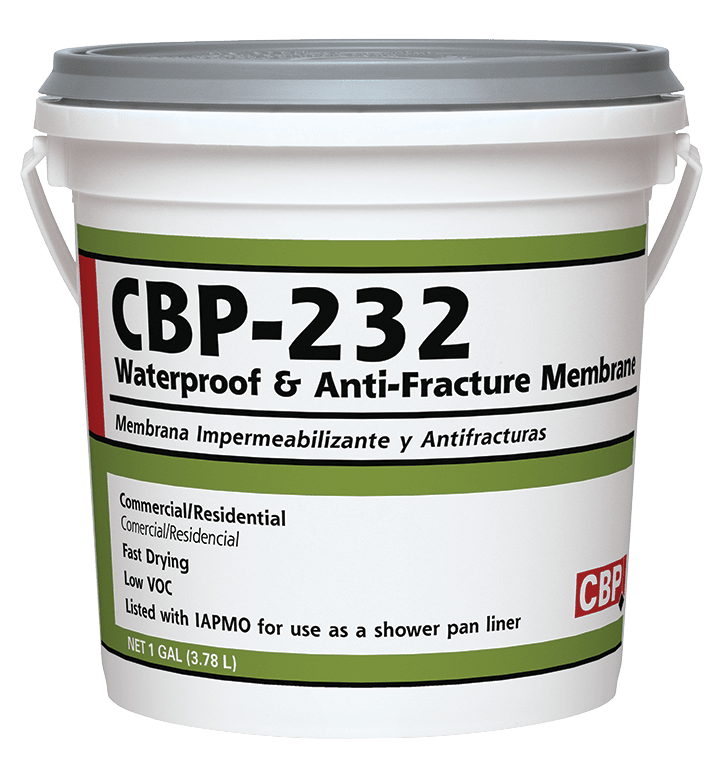

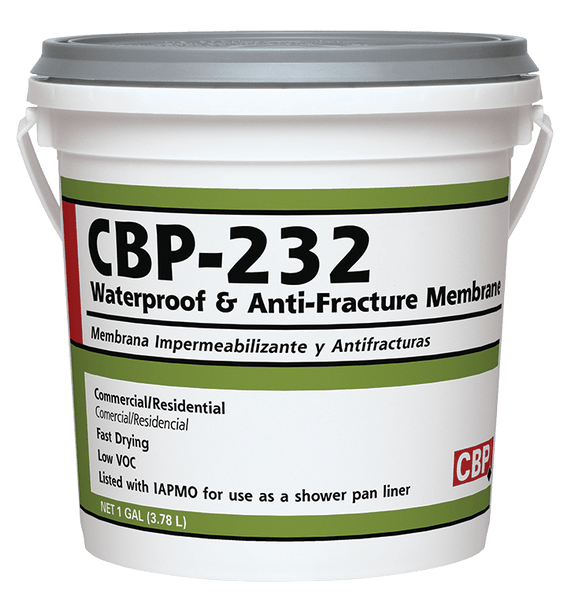

CBP-232 Waterproof & Anti-Fracture Membrane 5 Gallon

CBP-232 Waterproof & Anti-Fracture Membrane

CBP-232 is a ready-to-use, rapid drying, liquid applied elastomeric, waterproofing, and crack prevention membrane that does not require fabric in the field, coves, or corners. It can be used for interior or exterior commercial, industrial, or residential tile and natural stone floor & wall installations. Easily applied with roller, trowel or sprayer producing a continuous water and moisture barrier with outstanding adhesion. Bonds directly to metal and drains of PVC, stainless steel and ABS. Reduces concrete moisture vapor transmission to protect moisture sensitive tile, stone, and other flooring types.

Key Features

• User friendly – Easy to apply with a roller, trowel,

  or sprayer

•  Safe overall use – Low VOCs, is solvent-free,

  and non-flammable

•  For interior and exterior use onto horizontal

  and vertical surfaces

•  Can be used for commercial, industrial, and

  residential tile and stone installations

•  Rapidly cures (to a dark purple color) to form an

  extra heavy-duty rated monolithic membrane that

  provides a continuous water and moisture barrier

•  Up to 1/8” (3 mm) crack isolation over

  non-structural cracks

•  Can be used as a primer coat (1 part) when mixed

  with water (4 parts) onto lightweight cement and

  gypsum surfaces

•  Available in 1- and 5-gallon pail offerings

Suitable Substrates


• Concrete, cement mortar, masonry

•  Cement Backerboard

•  Post-Tension Concrete*

•  Gypsum-based underlayment (min. 2000 psi

  compressive strength)

•  Lightweight Concrete (min. 2000 psi

  compressive strength)

•  Existing ceramic tile and resilient flooring

•  Drywall (interior dry areas)

•  APA/CANPLY rated EGP/Exterior Glue Plywood and

  OSB/Oriented Strand Board (interior, dry areas only

  for water protection and crack isolation applications)

•  Bonds directly to metals

•  Floor heating systems

•  Pipe penetrations/transitions - PVC, ABS, copper, brass

  and stainless-steel (abrasion required)

Uses

•  Interior surfaces / exterior concrete and

  masonry surfaces

•  Shower pans, showers, tub surrounds

•  Swimming pools, fountains, water features

•  Spas and hot tubs

•  Industrial, commercial and residential applications

•  Commercial /residential kitchens, food

  processing areas

•  Exterior balconies and decks over

  occupied/unoccupied spaces

Coverage

CBP-232 as Anti-Fracture Membrane:

1 Gallon (3.78 L)

100 sq. ft (9.3 M2)

5 Gallon (13.2 L)

500 sq. ft. (46.5 M2)

CBP-232 as Anti-Fracture Membrane meeting ANSI A118.12

1 Gallon (3.78 L)

25 sq. ft. (2.3 M2)

5 Gallon (13.2 L)

125 sq. ft. (11.6 M M2)

CBP-232 as Waterproof Membrane:

1 Gallon (3.78 L)

55 sq. ft. (5.1 M2)

5 Gallon (13.2 L)

275 sq. ft. (25.5 M2)

CBP-232 as IAPMO Pan Liner meeting ANSI A118.10:

1 Gallon (3.78 L)

40 sq. ft. (3.7 M2)

5 Gallon (13.2 L)

200 sq. ft. (18.6 M2)
